Air to Liquid Peltier assembly module

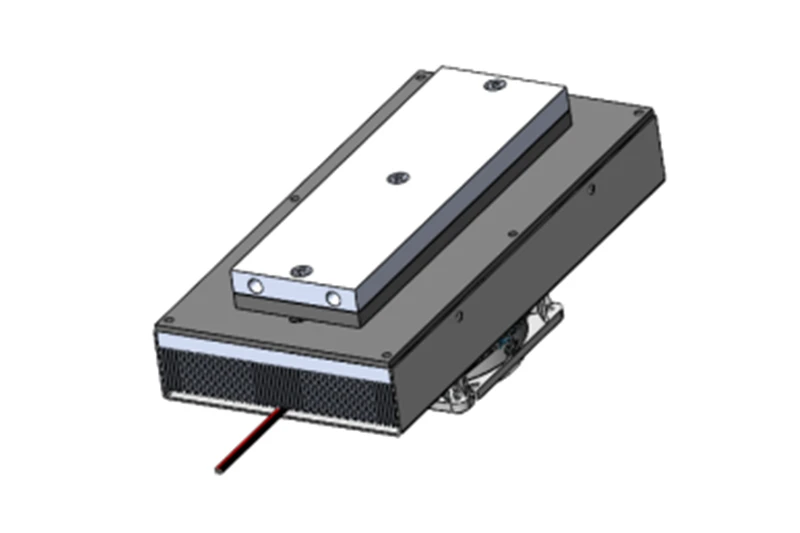

The ID-120-24-AL is a standard Thermoelectric Assembly in Zicotec that heat dissipation is forced air on hot sides, and Liquid cooling connective on cold side. It provides active thermal solution to cooling objects. The hot side uses one high performance heat sink with brand name fan to realize lower thermal resistance. The cold side is liquid exchanger. The brand name thermoelectric modules are custom designed to achieve a high coefficient of performance to minimize power consumption. Custom configurations and moisture protection options are available.

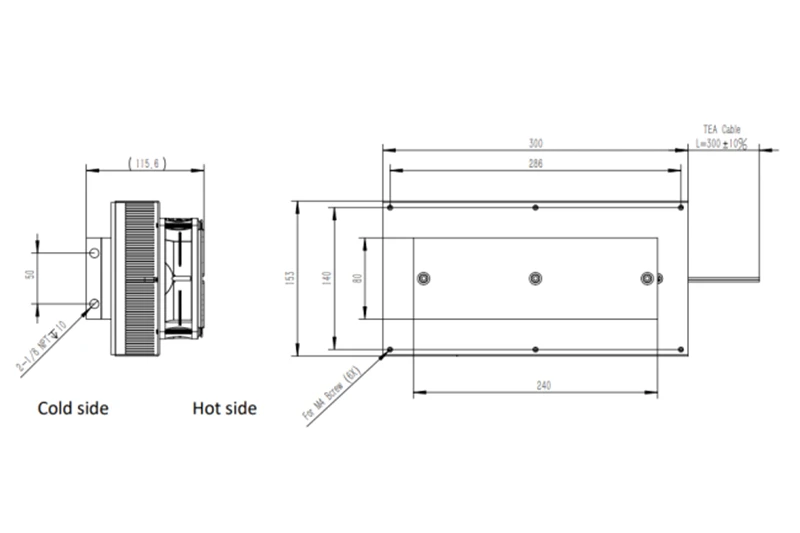

PRODUCT SPECIFICATIONS
Specifications | |
Production application | Indoor |

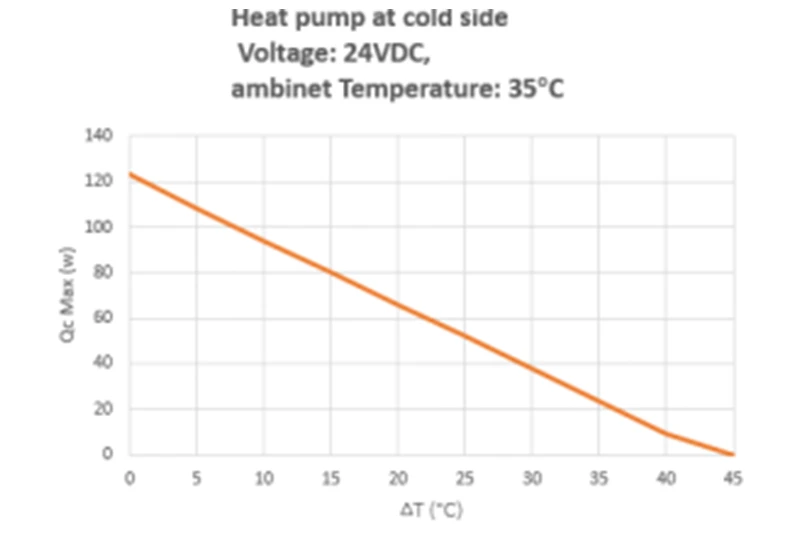

Cooling power Max (w) * | 123w, @ 35°C, dT=0°C |
Operation Voltage (VDC) | 24VDC (Max 26.4VDC) |
TEM Current (A) | Normal 5.13A, Initial5.7A |
Fan Rated Current (A) | Hot: 0.4A, |
Total power consumption (w)* | 132.7w, (TEM: 123.1w, Fan: 9.6w) |

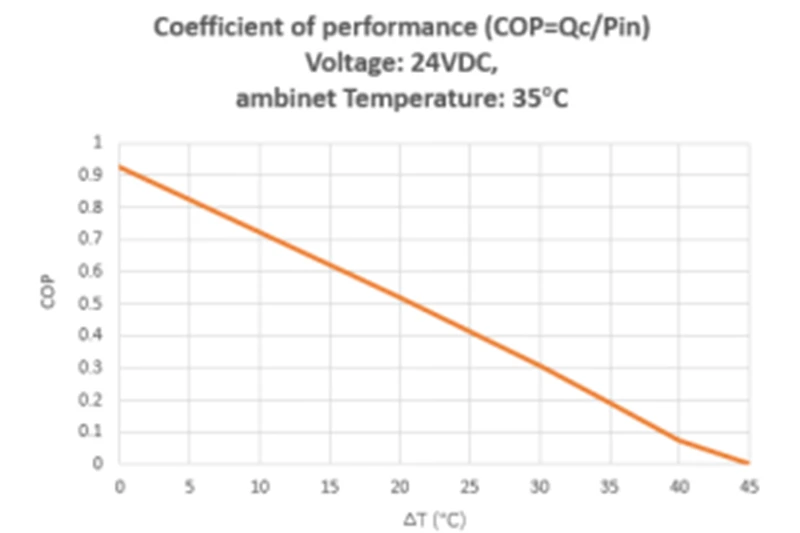

COP * | >0.9, (dT = 0°C) |
TEM Resistance (Ω, ±10%, 23°C) | 3.06-3.40-3.74 |
Performance Tolerance (±%) | ±10% |
Hold side thermal dissipated | Force convection by Axial fan |
Cold side thermal dissipated | Liquid transfer by Aluminum exchanger |
Over temperature (hot side) | 75°C |
Operation temperature range | -10°C to 55°C |
IP Level | None |
Fan MTBF | 70,000hours @40°C, 65%RH |
Noise level | <55dB(A) |
Certification Compliance | RoHS |
Weight (kg) | 3.7 |
Notes:
-“ * “ Based on operation voltage 24VDC.
-The above performance of unit is depended on Zicotec technology design and Lab test result.
THERMAL DESIGN
Thermal design simulation is beneficial to the design and development of Thermoelectric cooling unit. It helps engineer to work out a Thermoelectric Assembly in a short time.

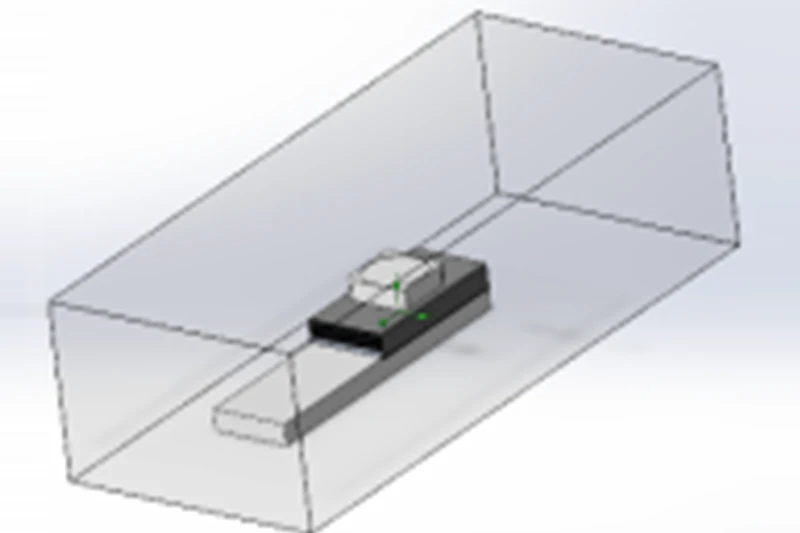

The boundary conditions in simulation as below,

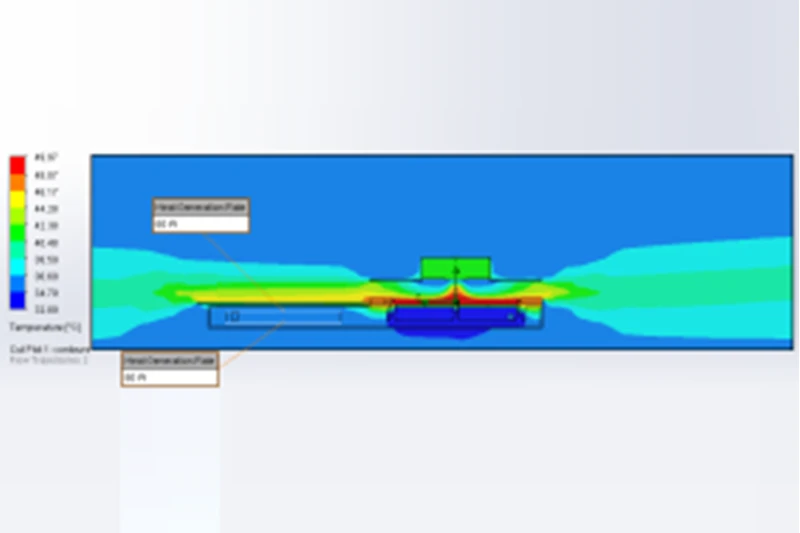

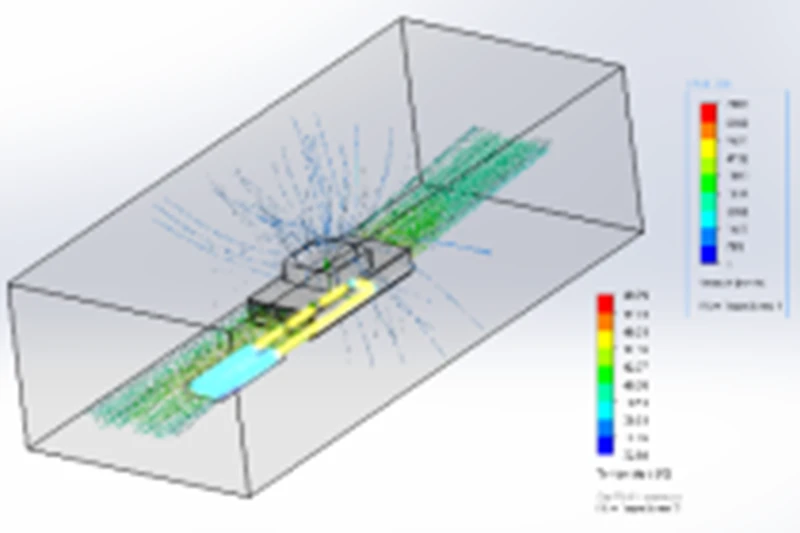

The ambient temperature in 35°C, the operation voltage 24VDC. A dummy heater exchanger generated 120w inside liquid exchanger. The simulation result requires thermoelectric cooling unit to maintain 35°C inside the exchanger, flow rate 4L/min.
Testing &Lab

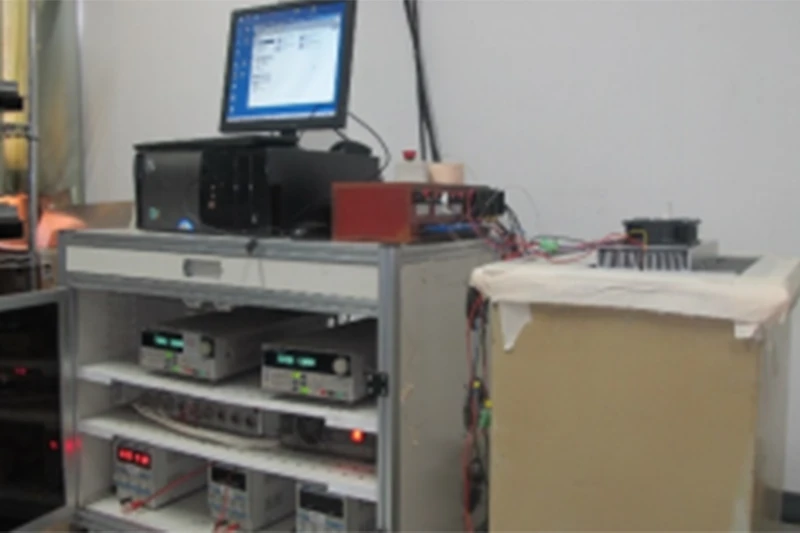

Thermoelectric Assembly can be validated by real cooling performance testing. We used a standard enclosure for Air to Air series, a Standard dummy heater for Air to Direct series and Air to Liquid.
Installation Requirement
Safety & Warning

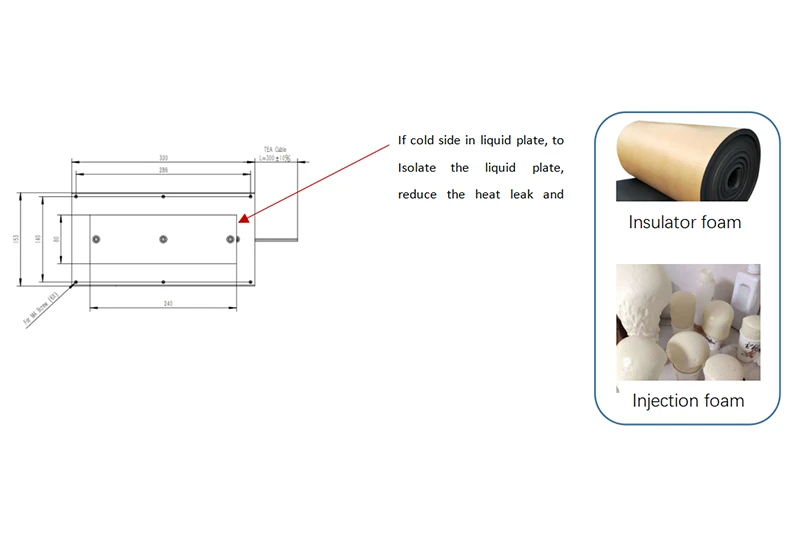

1.Insulated cold side well to avoid the moisture issue, which may burn out electronic components and cause potential circuit safety hazards.

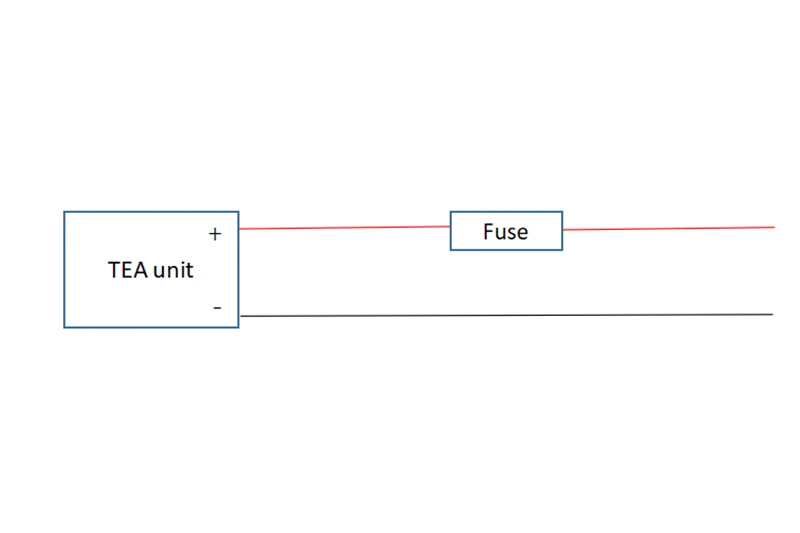

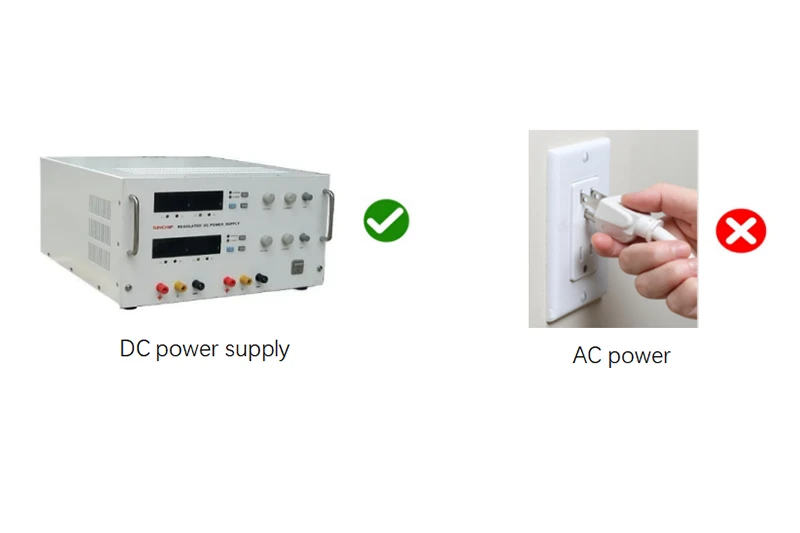

2.Don’t input incorrect voltage to the unit.
3.Handle the unit carefully to avoid damage and hurt by the falling out.
